Injecting a garage ceiling expansion joint from underneath is harder than filling one from the top, and the difference is gravity. Filled from above, the material sits where you put it. Injected from below, it has to be held in place while it cures, and you have to know how much the joint will take before you start.
The answer to both problems is the same: build a sealed injection chamber under the joint first, prove it holds, then inject.
This is the repair that lets a leaking joint be fixed without excavating the deck, landscaping or driveway above it.
Day one: building the chamber
- First backer rod. A backer rod is installed into the joint to create a secure base for the injection — a floor for the material to press against rather than an open cavity.
- Second backer rod, two inches below. A second rod is installed the full length of the joint, two inches below the first. The space between the two rods is the injection chamber.
- Injection ports. Ports are drilled beside the joint at intervals along its length, giving controlled access into the chamber.
- Seal the chamber. A fiberglass layer is installed under the second backer rod and coated with a polyurea-based material, closing the chamber so injected material cannot simply fall back out.
Nothing is injected on day one. The chamber has to cure.
Day two: injection
- Integrity check. The fiberglass sealing the chamber is checked before anything is pumped. If it leaks under injection pressure, the material ends up on the garage floor instead of in the joint, and the joint is no better off.
- Inject. With the chamber proven, the joint is injected with a polyurea-based material — a different formulation from the one used to seal the chamber. The two products do different jobs and are not interchangeable.
- Seal the ports. Every injection port is sealed and patched for a seamless finish.
- Final coat. The joint is coated with a further layer of waterproofing material.
What it takes out of the garage
A 20-foot joint span needs roughly ten parking spots vacated and takes about two days — the two days above. The garage does not close. Most repaired areas are back in service within 24 hours of the work finishing on them.
Cost for a span of that size runs roughly $6,000 to $10,000. The comparison worth making is with the top-side alternative: excavation alone is about 70% of the cost of a top-side repair before any waterproofing is installed, and that is before reinstating whatever was above — landscaping, pavers, driveway, podium deck.
Why polyurea for injection
Polyurea is moisture-insensitive, so it cures in a joint that is already wet — which every leaking joint is. It bonds to the joint faces rather than sitting in them as a plug, and it stays flexible enough to keep moving with a joint that is, by design, a moving part of the structure.
The materials carry a Ministry of Transportation Ontario rating for roughly a 25-year service life. That is a material service-life rating, not a warranty term.
A real example

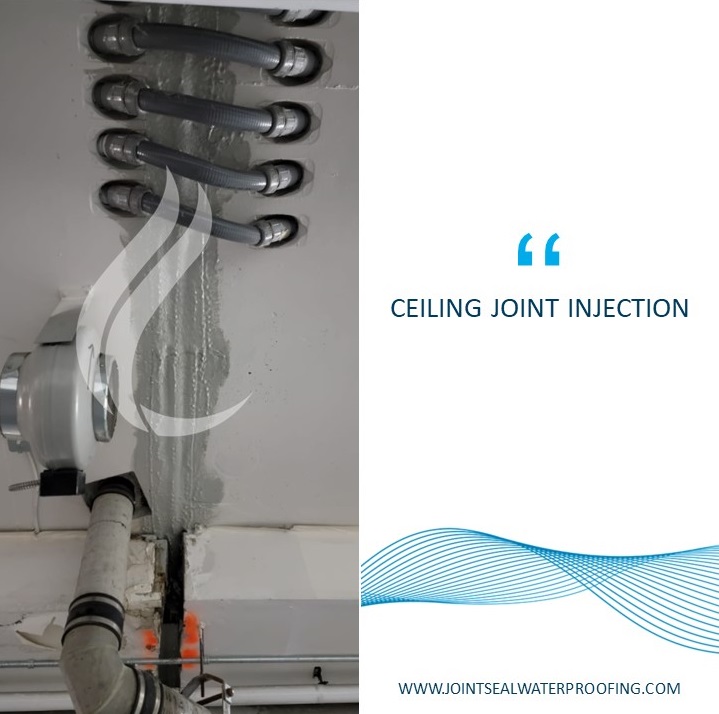

A high-rise residential building on Dupont St. in Toronto. Ceiling expansion joint in the parking garage, injected from underneath over two days using exactly the sequence above, with the chamber integrity verified before injection began.
The opinion, stated plainly
If an overhead joint quote does not describe how the chamber is formed and checked, ask. Injecting into an unsealed overhead joint is how material ends up on the slab and a joint ends up half full — and a half-filled joint reads as repaired on the invoice and leaks by spring.
